High Quality Arabic Multilingual Wireless LCD Counter Display EQMS Electronic Queue Management Systems Solution For Banks

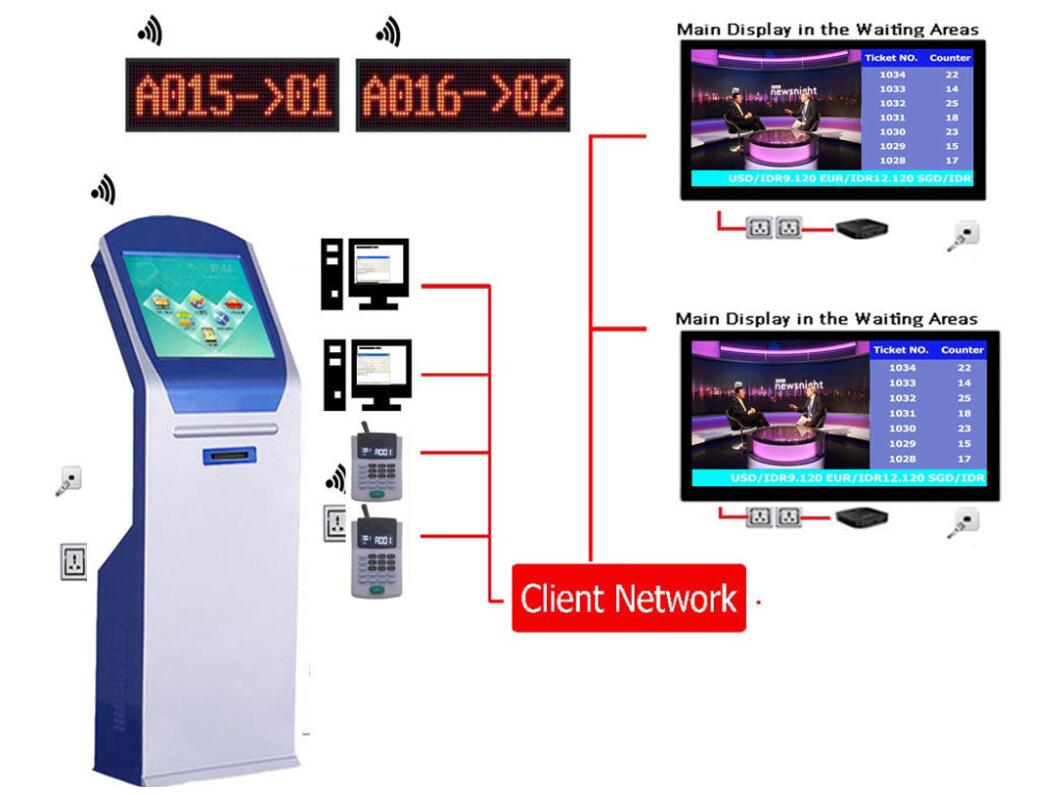

The Complete Queue System consist of the following:
1. Ticket Dispenser : IR Touch Screen LCD Monitor+ PC + Thermal Printer (All integrated into one unit)
2. counter calling pad terminal or counter computer which install the software call pad
3. Led/LCD Main Display(S) Screen In common waiting area.
4. Led/LCD Counter Displays Above Counter (Optional)
5. All units are interconnected by means of RS485 or wireless ways
Detailed Component List Of Queue Management System:
1.Touch Screen Ticket Dispenser 2.Counter LED/LCD Display Unit
3.Counter Call Pad Terminal 4.LED/LCD Waiting Area Main Display(Optional)
5.Customer Feedback Terminal(Optional)
•17 inch Touch Screen LCD display • Select Service Required. • Ticket is printed with selected service name, ticket number,number of waiting person, date & time,welcome message and advertising text • Includes Real Time Reporting Features. • Built in Industrial PC • Can Link to RS485 wired or wireless
| Cabinet | All in one cold steel cabinet |
| LCD Display | 17” LCD Display with resolution of 1280*1024 |
| Touch Screen | 17” IR Touch Screen |
| Thermal Printer | 80mm Epson Thermal Printer with auto cutter |
| PC Configuration | CPU: Intel 2.41Ghz 2G DDR3 500G HDD 6 USB port Windows 7 Operation System installed |
| Speaker | Inbuilt amplifier and 2 speakers |
| Power Supply | 110V-240V |
Queue Management System | 1.Queue Management System software: control and manage the queues, can realize the function of Multiple language calling and Multiple language translation, and can realize the report statistic function 2.Interface and language and ticket format can be customized, and you can add logo or some other information on the ticket, like time, waiting people, the information can be editable |
| |
| Press Button | 21 multiple function button |
| LCD Display | 8 digits lcd display,5 digits showing the queue number of the called customer,3 digits display for number of customer waiting . |
| Power Supply | 5V |
| Communication | Wired or Wireless |
| Multiple function Button | “Call”, “Recall”, “Transfer””Store queue and callback” ”Service Time Reminder” “Clear” and etc. |
| Specifications for LED Counter Display: |
8 Digits RED Color LED Counter Display 4 digits display ticket number & 2 digits display for counter number,with Arrow for direction to the counter number The display format can be customized 110V-240 V Power Supply Wired or Wireless available |
| Specifications for LED Main Display: |
4 Lines * 8 Digits RED Color LED Counter Display 4 digits display ticket number & 2 digits display for counter number,with Arrow for direction to the counter number The display format can be customized |
| Specifications for Player Box : |
Windows based or Android based |
*Inbuilt Multimedia and Queue Number Software,can split the screen to many zones,one side can play the advertising video,another side can play the queue information,at the bottom side can display the running text. by using the player box, make the queue number showing on the LCD screen |
If any interest in our Queue Management System product,kindly contact us as below information
|
|
