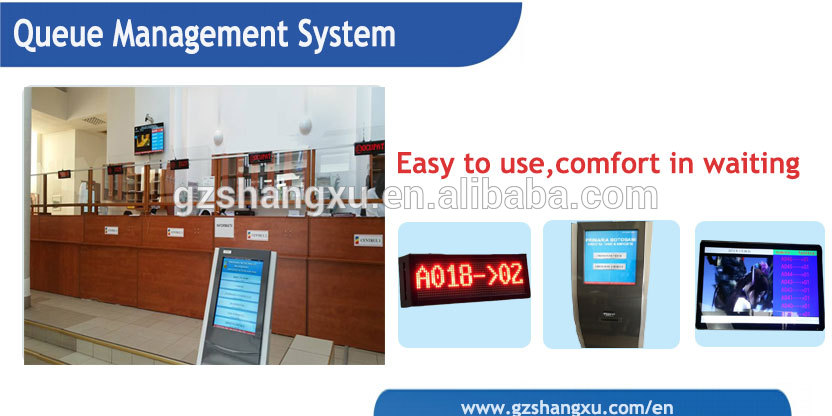

Wireless Complete Bank Counter Network Token Queue Management System With Digital Signage LCD TV Solution

QUEUE MANAGEMENT SYSTEM FLOW OF WORK :

Basic Component Of Queue Management System:

1. SX-Q173 Ticket dispenser

-Material: Cated with cold steel material

-Display: 17" Samsuang LCD display, with resolution of 1024X768@75Hz,

-Touch screen: Surface Acoustic Wave or five wire resistive touchscreen

-CPU:Dual Core 1.80GHz

-2G DDR3 Memory or higher

-32G SSD or higher as you require

-Integrated sound card and graphic card

-Printer: with 80 mm Epson Auto Cutter thermal Printer

-Both Wire and Wireless Queuing System Solution available

-Support for 1-64 services, unlimited Counter Display, and unlimited Keypad by Multiple control system
-Interface and language and ticket format can be customized by customers
-Multilanguage Voice calling, and you can add logo or edit some other information on the ticket, like time, waiting people, and the Ticket number
-Color and Design can be customize as you require
-OEM/ODM also available

2. 8 Digital LED counter display

Model No:SX-QCD3705

F3.75 single color Dot Matrix LED Display;8 Digits can be displayed;

4 digits for display ticket number,2 digits for display counter number,with the arrow for the direction to the counter

The newly calling ticket number will flash at the top of the display (Optional)

Wired and Wireless system solution available

The size and length can be customized as per customer requirement

. 7 inch Tablet Call pad terminal

l CPU 1.92GHz

l RAM 2GB

l Memory: 32GB

l OS: windows

l Touch screen: 7 inch Capacitive touch screen

l LCD Display: 7inch IPS screen with resolution of 1280*800

l Input Power: 5V3A

Installed our calling application software

Function: Can realize the function of login,call,recall,special call,transfer,Service Time Reminder and etc.

Also can check the passed number which stored in the call pad and can call back.(Optional)

4.Waiting Area LED Main Display (Optional)

Model: SX-QMD0504

Size H*W*D(cm) :53*53*6

F5.0 RED color Dot Matrix LED Display;8 Digits in each line,total 4 rows;

4 digits for display ticket number,Counter number available

The new calling ticket number will flash at the top of the display

220V Power Supply

Wireless and Wired solution can support

Can put on the Waiting Area for indicate customer

The size of the display can be customized as you required

5. Multimedia&Information Player Box(Optional)

Model:SX-QMPB01

*Video output: at least can support the image with the resolution of 1024 × 768 / 75 Hz ;

*Inbuilt Software,and can split the screen to more than 5 zones to display different content

*Supported video formats: MPEG-1,MPEG-2 MP@HL,MPEG-4 ASP@L5,etc
*Image formats supported:JPG, BMP, static GIF, and provides a 10 / 100 M adaptive fast Ethernet interface

*storage media: standard 4G memory card;

6.Queue System Software Qversion SX2016

Queue Management System software: control and manage the queues, can realize the function of Multiple language calling and Multiple language translation, Arabic language, French, etc also supported,and can realize the report statistic function

Interface and language and ticket format can be customized, and you can add logo or some other information on the ticket, like time, waiting people, and etc
