LCD Counter Arabic French English Multilingual Queue Management System (QMS)For Bank/Hospital/Clinic Service Center

QUEUE MANAGEMENT SYSTEM PROCESS:

Take a Token-Waiting-Calling your number-Customer Service-Customer Feedback-Report System

Basic Component Of Queue Management System:

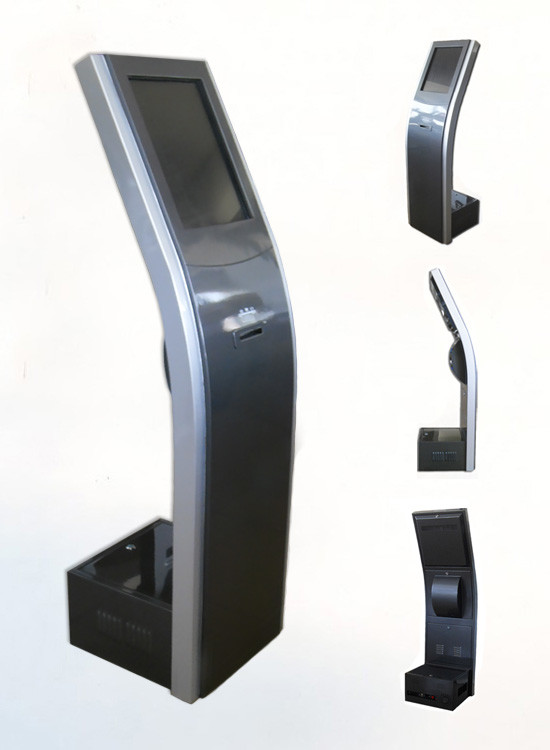

1. SX-Q171 Touch screen Ticket dispenser

-Material: Cabinet with cold steel material

-Display: 17" Samsuang LCD display, with resolution of 1024X768@75Hz,

-Touch screen: Surface Acoustic Wave or five wire resistive touchscreen

-CPU:Dual Core 1.80GHz

-2G DDR3 Memory or higher

-32G SSD or higher as you require

-Integrated sound card and graphic card

-Printer: with 80 mm Epson Auto Cutter thermal Printer

-Both Wire and Wireless Queuing System Solution available

-Support for 1-64 services, unlimited Counter Display, and unlimited Keypad by Multiple control system
-Interface and language and ticket format can be customized by customers
-Multilanguage Voice calling, and you can add logo or edit some other information on the ticket, like time, waiting people, and the Ticket number
-Color and Design can be customize as you require
-OEM/ODM also available

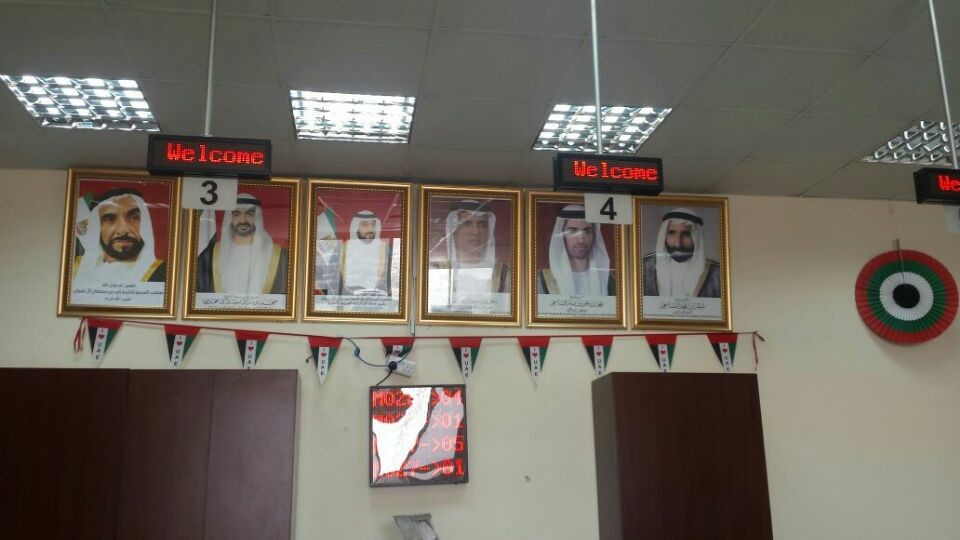

2. 8 Digital LED counter display labeled with Counter Number

Model No:SX-QCD3705

F3.75 single color Dot Matrix LED Display;8 Digits can be displayed;

4 digits for display ticket number,2 digits for display the Counter number

The size and length can be customize as you require

Inbuilt Power,22V Power Supply

The new calling Ticket number can blinking on the display(Option function)

WIred and Wireless system solution both available

3.21 Keys Call pad

Model No:SX-QKP21

Size:140mm*81mm*26mm

21-key wireless multi-function keypad;

Equipped with Small LCD Display for showing message such as Calling Ticket Number and the number of customer waiting and other message.

Power supply: USB or USB micro adapter.

Wired and Wireless system solution available

Software counter call pad also available

Function: Can realize the function of login,call,recall,special call,transfer,Service Time Reminder and etc.Also can check the passed number which stored in the call pad and can call back.

4.Waiting Area LED Main Display (Optional)

Model: SX-QMD0504

Size H*W*D(cm) :53*53*6

F5.0 RED color Dot Matrix LED Display;8 Digits in each line,total 4 rows;

4 digits for display ticket number,Counter number available

The new calling ticket number can blinking at the top of the display(Option Function)

220V Power Supply

Wireless and Wired can support

Can put on the Waiting Area for indicate and remind customer

The size of the Main Display can be customized as you required

5.Multimedia and Information Player Box(Optional)

Model:SX-QMPB01

*Video output: at least can support the image with the resolution of 1024 × 768 / 75 Hz ;

*Inbuilt Software,and can split the screen to more than 5 zones to display different content

*Supported video formats: MPEG-1,MPEG-2 MP@HL,MPEG-4 ASP@L5,etc
*Image formats supported:JPG, BMP, static GIF, and provides a 10 / 100 M adaptive fast Ethernet interface

*storage media: standard 2G memory card;

6.Queue System Software Qversion SX2016

Queue Management System software: control and manage the queues, can realize the function of Multiple language calling and Multiple language translation, Arabic language, French, etc also supported,and can realize the report statistic function

Interface and language and ticket format can be customized, and you can add logo or some other information on the ticket, like time, waiting people, and etc

SHANGXU is a company specializedin providing an integrated complete queue management system solution,DigitalSignage Solution,Self Service Touch Kiosk Solution,Customer Feedback SystemSolution and other related Solution to the community inclusive of public andprivate industries,university, and commercial organizations as well specializein Banking,Government ,hospitals and etc.

The company holds a team ofhighly skilled and motivated people with a broad base of experience, focused onproviding cost effective, innovative and reliable solutions engineered andsupported. public and rivate industries,university, and commercial organizations as well specializein Banking,Government ,hospitals and etc.

We focus to deliver 100%quality, on time service and post sales service. 24x7 service is our backbonein the competitive industry. We look forward be your best business partner.
