Bank/Hospital/Clinic Wireless LED/LCD Token Number display queuing management system


QUEUE MANAGEMENT SYSTEM WORK PROCESS:
Ticket Printing-Waiting-Calling your number-Customer Service


Advantange Of Queue Management System

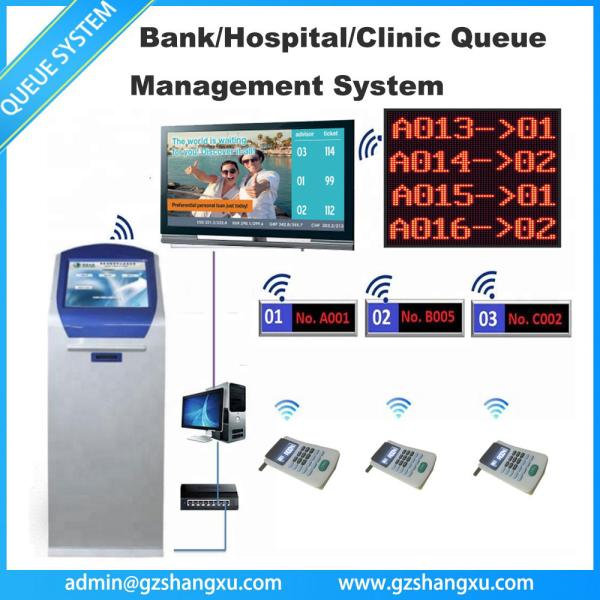

Basic Component Of Bank Wireless led display queue management system:

1. SX-Q172 Ticket dispenser

-Material: Cabinet with cold steel material
-Display: 17" Samsung LCD display, with resolution of 1024X768@75Hz,
-Touch screen: Surface Acoustic Wave or five wire resistive touchscreen
-CPU:Intel Dual Core 1.80GHz
-2G DDR3 Memory or higher
-32G SSD or higher as you require
-Integrated sound card and graphic card
-Printer: with 80 mm Epson Auto Cutter thermal Printer
-Both Wire and Wireless Queuing System Solution available
-Support for 1-64 services, unlimited Counter Display, and unlimited Keypad by Multiple control system
-Interface and language and ticket format can be customized by customers
-Multilanguage Voice calling, and you can add logo or edit some other information on the ticket, like time, waiting people, and the Ticket number
-Color and Design can be customize as you require
-OEM/ODM also available

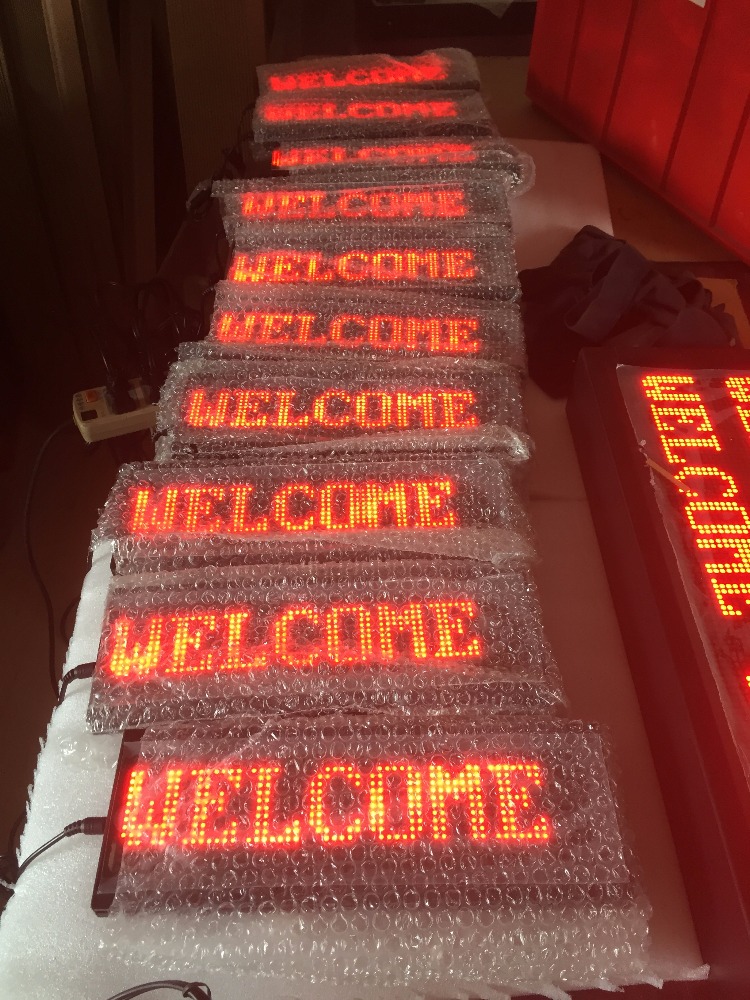

2. 8 Digits LED counter display

Model No:SX-QCD3705
F3.75 single color Dot Matrix LED Display;8 Digits can be displayed;
4 digits for display ticket number,2 digits for display counter number,with the arrow for the direction to the counter
Wired and Wireless system solution available

3.21 Keys Calling pad

Model No:SX-QKP21
Size:140mm*81mm*26mm
21-key wireless multi-function keypad;
Power supply: USB or USB micro adapter.
220V power supply can be directly connected,
Wired and Wireless system solution available
Software callpad also available

Function: Can realize the function of login,call,recall,special call,transfer and etc.Also have the function of service time reminder.
Also can check the passed number which stored in the call pad and can call back.

4.Waiting Area LED Main Display (Optional)

Model: SX-QMD0504
Size H*W*D(cm) :53*53*6
F5.0 RED color Dot Matrix LED Display;8 Digits in each line,total 4 rows;
4 digits for display ticket number,2 digits for display counter number,with the arrow for the direction to the counter
New Caliing Ticket Number will flash at the top of display
220V Power Supply
Wireless and Wired can support
Can put on the Waiting Area for indicate customer


5.Multimedia and Information Player Box(Optional)

Model:SX-QMPB01
*Video output: at least can support the image with the resolution of 1024 × 768 / 75 Hz ;
*Inbuilt Software,and can split the screen to more than 5 zones to display different content .One zone can display the advertising video,another zone can display the centralized queue number information,And at the bottom can display the running advertising message.
*Supported video formats: MPEG-1,MPEG-2 MP@HL,MPEG-4 ASP@L5,etc
*Image formats supported:JPG, BMP, static GIF, and provides a 10 / 100 M adaptive fast Ethernet interface


6.Queue System Software Qversion SX2016

Queue Management System software: control and manage the queues, can realize the function of Multiple language calling and Multiple language translation, Arabic language, French, etc also supported,and can realize the report statistic function

Interface and language and ticket format can be customized, and you can add logo or some other information on the ticket, like time, waiting people, and etc
